Rollo de red de seguridad
Rollo de red de seguridad
Rollo de red de seguridad
Rollo de red de seguridad
Rollo de red de seguridad
Rollo de red de seguridad

Prevención de objetos caídos

Rollo de red de seguridad

Redes de retención secundarias que evitan accidentes por caída de objetos

Red de seguridad anticaída. Este rollo de red de seguridad de acero inoxidable se utiliza para crear sus propias redes de seguridad in situ. El rollo de red de seguridad se corta en secciones más pequeñas con herramientas manuales sencillas y se enrolla alrededor del equipo en altura. Se utiliza un cordón de acero para fijar la red a una estructura como método de retención secundario para evitar la caída de objetos. Los rollos de red de seguridad son aptos para condiciones terrestres y marinas y están tratados químicamente.

AISI 316Cut to sizeDROPS best practice

Rollo de red de seguridad

Request a quotePrices are sent as a quote — for one product or your whole list. The datasheet is yours after a few details.
Prices for distributors

  • Quote within one working day
  • Ships from EU and US stock
  • Datasheet and DoC — leave your details, download at once
Not sure which model?Talk to an engineer, Mon–Fri 08:00–17:00 CET
+31 33 461 48 44
  • Specified by Shell, BP, TotalEnergiesand written into contractor safety procedures
  • Datasheet and DoC with every articleleave your details once, then every PDF opens
  • Stock in the EU and the USships from Leusden (NL) and Delaware (US)
  • Engineer on the phoneMon–Fri 08:00–17:00 CET, +31 33 461 48 44

What is the Safety Net Roll?

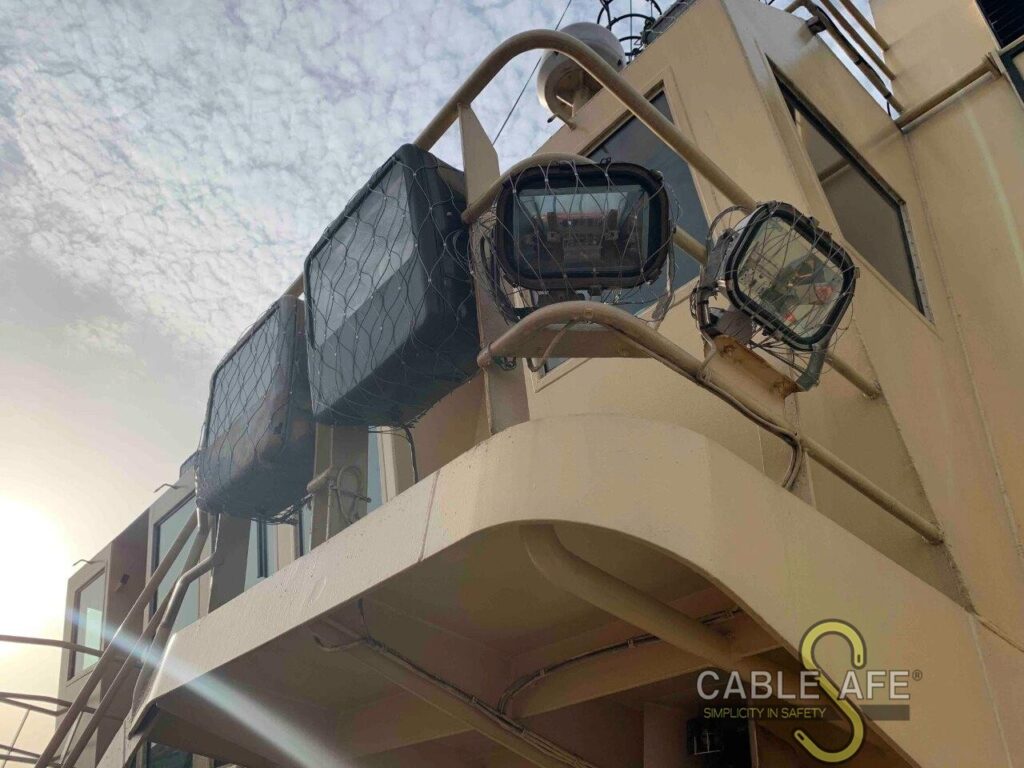

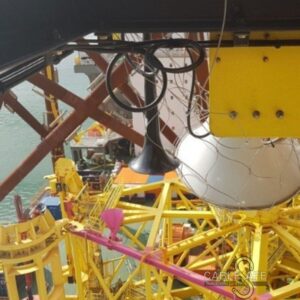

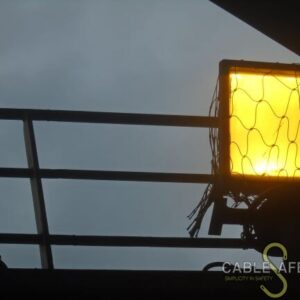

The Safety Net Roll is AISI 316 stainless-steel netting on a roll, cut and shaped on site to enclose equipment at height that does not match a standard fit-to-size net. It gives the same secondary retention — the object is caught if its primary fixing fails — for irregular fixtures, brackets and assemblies, and is tethered with an AISI 316 lanyard.

Material
Stainless steel AISI 316
Use
Cut to shape on site
Lanyard SWL
1,077 kg (2,374 lb)
Garantía
3 years

La caída de objetos es una de las principales causas de incidentes en la industria pesada. En la industria de perforación en alta mar, los objetos caídos figuran entre los diez incidentes más frecuentes. Asegurando los elementos de fijación en altura (por ejemplo, altavoces, cámaras de vídeovigilancia, luces de navegación, focos o bandas luminosas, etc.) mediante dispositivos de bloqueo secundarios y técnicas de fijación adicionales, se evitan incidentes y se reduce significativamente el riesgo de caída de objetos para las personas que trabajan debajo de estos elementos.

Las redes de retención secundarias evitan la caída de objetos. Estas redes de seguridad específicamente diseñadas sujetan, encierran y atan los elementos de fijación aéreos con el fin de evitar que un elemento en altura caiga cuando falle su fijación primaria. En otras palabras, esta red de seguridad para evitar la caída de objetos atrapará el equipo en altura cuando los soportes se corroan o fallen las conexiones a la estructura (por ejemplo, impacto de grúa, fatiga, etc.). Las redes están diseñadas para instalaciones terrestres y marítimas.

Para evitar la caída de objetos desde altura, las redes de seguridad se enrollan alrededor de los objetos. El tamaño del objeto determina el tamaño del rollo de red de seguridad necesario. Se suministra un fuerte cordón para entrelazar a través de la red y envolver y bloquear los extremos de la red de seguridad a la estructura sólida. Este método de retención secundaria se aplica habitualmente para proteger la vida de los trabajadores y los peatones.

Industries served

Specified in the contractor safety procedures of, among others:

  • Concha
  • BP
  • TotalEnergies
  • BASF
  • Equinor
  • INEOS
  • Heerema
  • Boskalis
  • LyondellBasell
  • Methanex

How the models differ

Especificaciones

The specification sheet for this article is being finalised. Ask us for the datasheet and we send it the same day.

Which size do I need?

Pick the hook by the heaviest single load it will carry, not by hose diameter alone. The static load in the table is the figure to work with; when the load is dynamic or shock-loaded, ask us to check the application first.

Frequently asked

When do I choose the roll over fit-to-size nets?

When the object has an unusual shape or size, or when you secure many different items in one campaign. For standard fixtures the fit-to-size net is faster because it needs no cutting.

How is the net closed around the object?

Cut the netting to size, wrap it around the fixture and close it with the supplied stainless-steel clips; then tether the net to the structure with the lanyard.

Is the roll certified?

The netting and lanyards are the same AISI 316 material as the fit-to-size nets; lanyard load tests are SGS verified and certificates are available.
